3K UniSlope

UniSlope 3K offers complete flexibility and is ideal for project with trick joist positions. The freestanding linear drain can be placed in the centre, close to or away from the wall and has a large range of drain finishes available. With two on-way slopes / falls to the drain you don’t need to cut tiles towards the drain making it perfect for large tiles. The UniSlope® 3K wet room kit comes with a BBA approved pressed stainless steel linear drain, solid preformed UniSlope boards which have the gradient built in for the slope and ETAG 022 approved tanking / waterproofing kit. UniSlope boards are manufactured so they cannot be compressed for a safe and stable installation. There is a range of outlets to suit all projects including high capacity drainage and low profile for wet room projects struggling with floor depth.

Product logo

What's included

What's included

Enlarge image

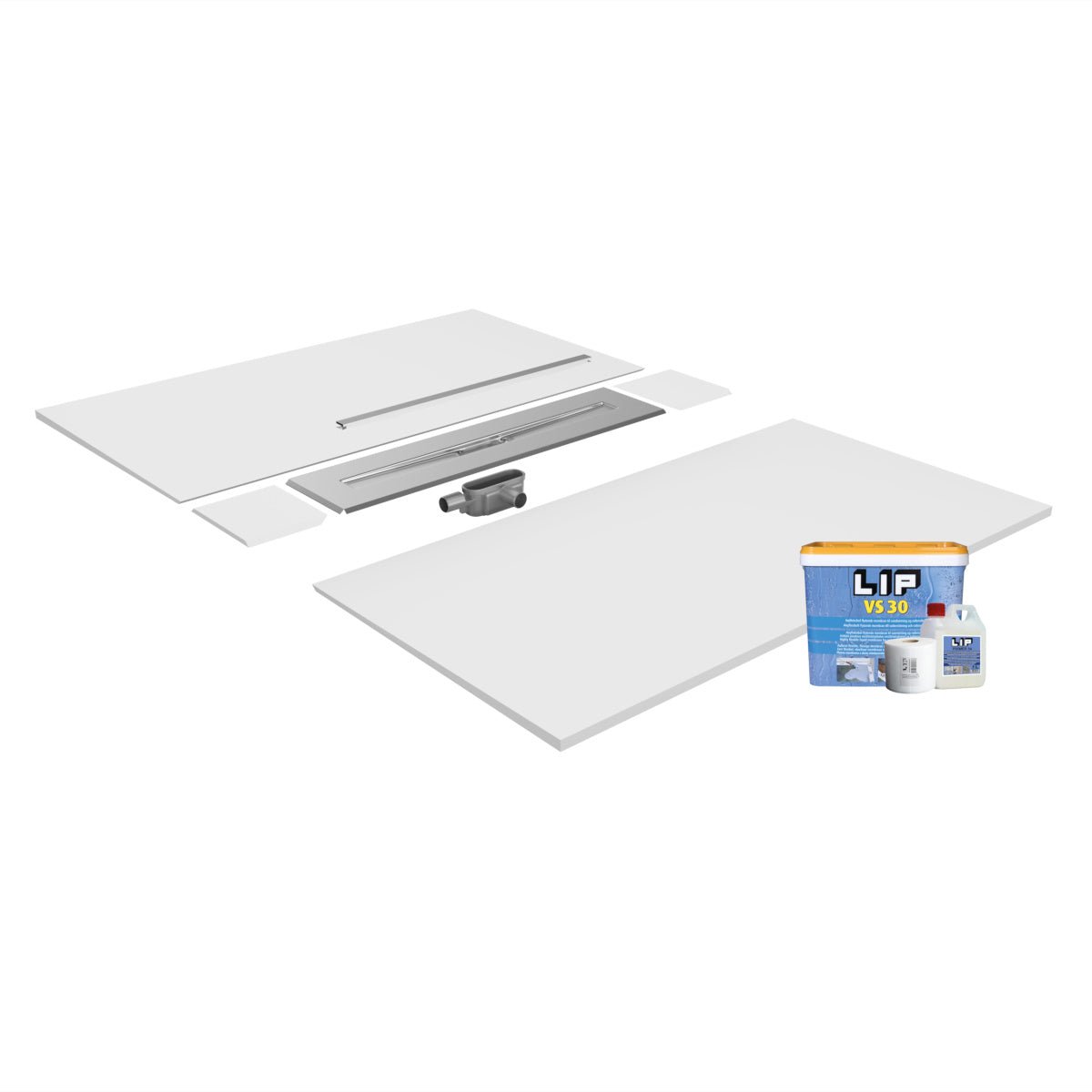

Drain, UniSlope Board and Tanking Kit

  • 10-year guarantee – Designed and manufactured by experts
  • Pressed Stainless Steel drain body – no weak areas
  • Large metal flanges to waterproof onto which provides a very strong tanking / waterproofing bond onto the drain
  • Level floor access is easily achievable
  • 50mm water seal, preventing odour from coming through the drain and also complies with EN 1253
  • Easy to install kit with installation instructions and dedicated technical team to assist
  • Large range of outlets for different pipework
  • Removable grate / tiled cover for easy cleaning
  • Solvent free paint-on waterproofing membrane
  • Stable and safe with large metal flanges
  • Internal channel to prevent stagnant water
  • Approved for wooden and concrete construction
  • BBA, ETAG, EC1 Plus and CE Approved

Unidrain’s award winning freestanding linear drain is designed for away from the wall installations and has four large horizontal flanges to securely waterproof onto. Is it manufactured from solid pressed stainless steel with no welds or weak areas. The standard outlet has a capacity of 54ltrs per minute and can be easily cleaned by removing the grate / tiled cover and trap. The drain is BBA approved to comply with building regulations for wet room trapped gullies, wastes and drains.

The UniSlope® 3K has two one-way slope preformed boards either side of the linear drain. Drain can be positioned where required and the boards are trimmed to suit. UniSlope boards are manufactured to be extremely strong so the internal core of the board cannot be crushed. For concrete wet room installation, 2mm wet room adhesive should be applied level under UniSlope boards.

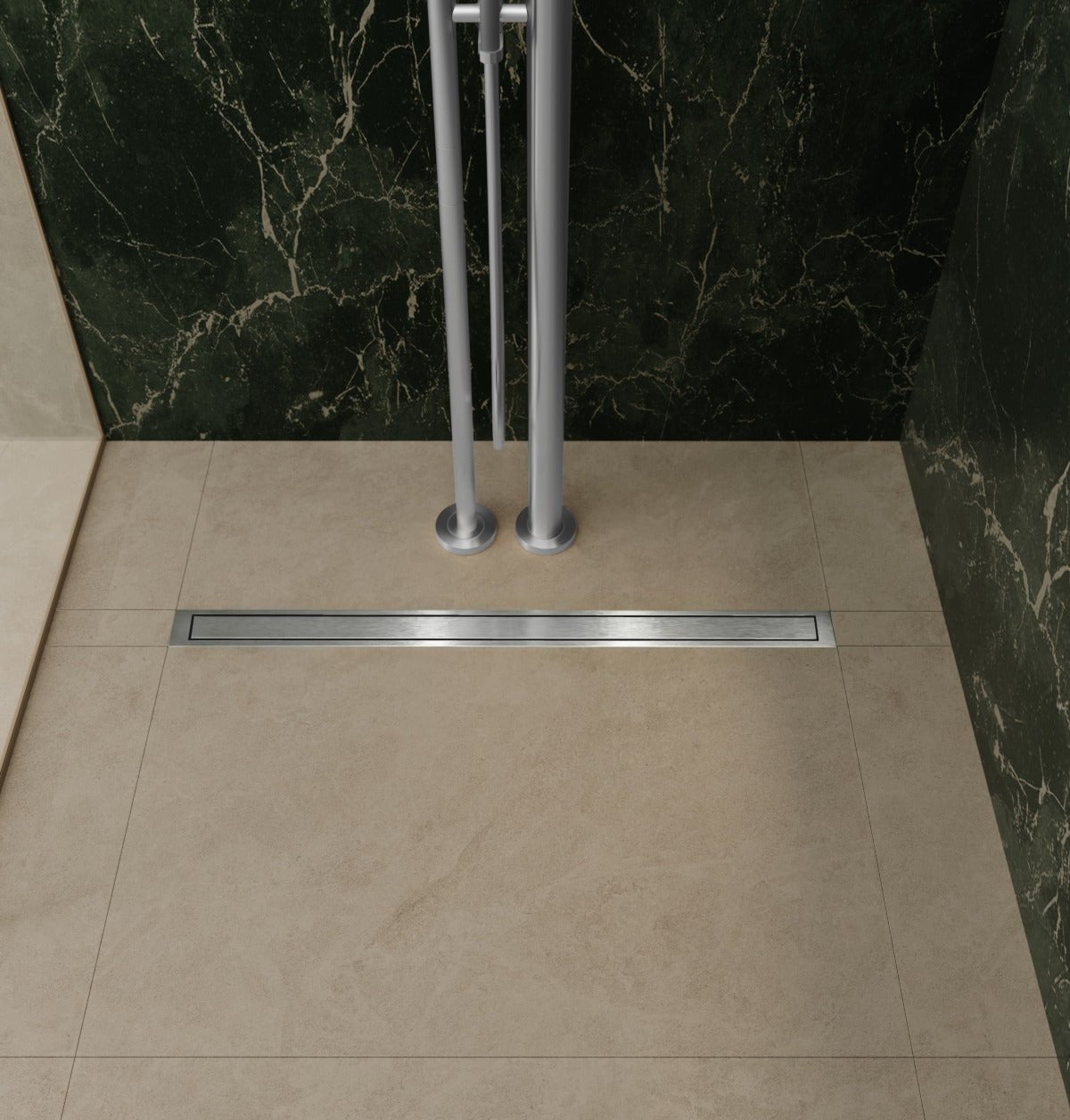

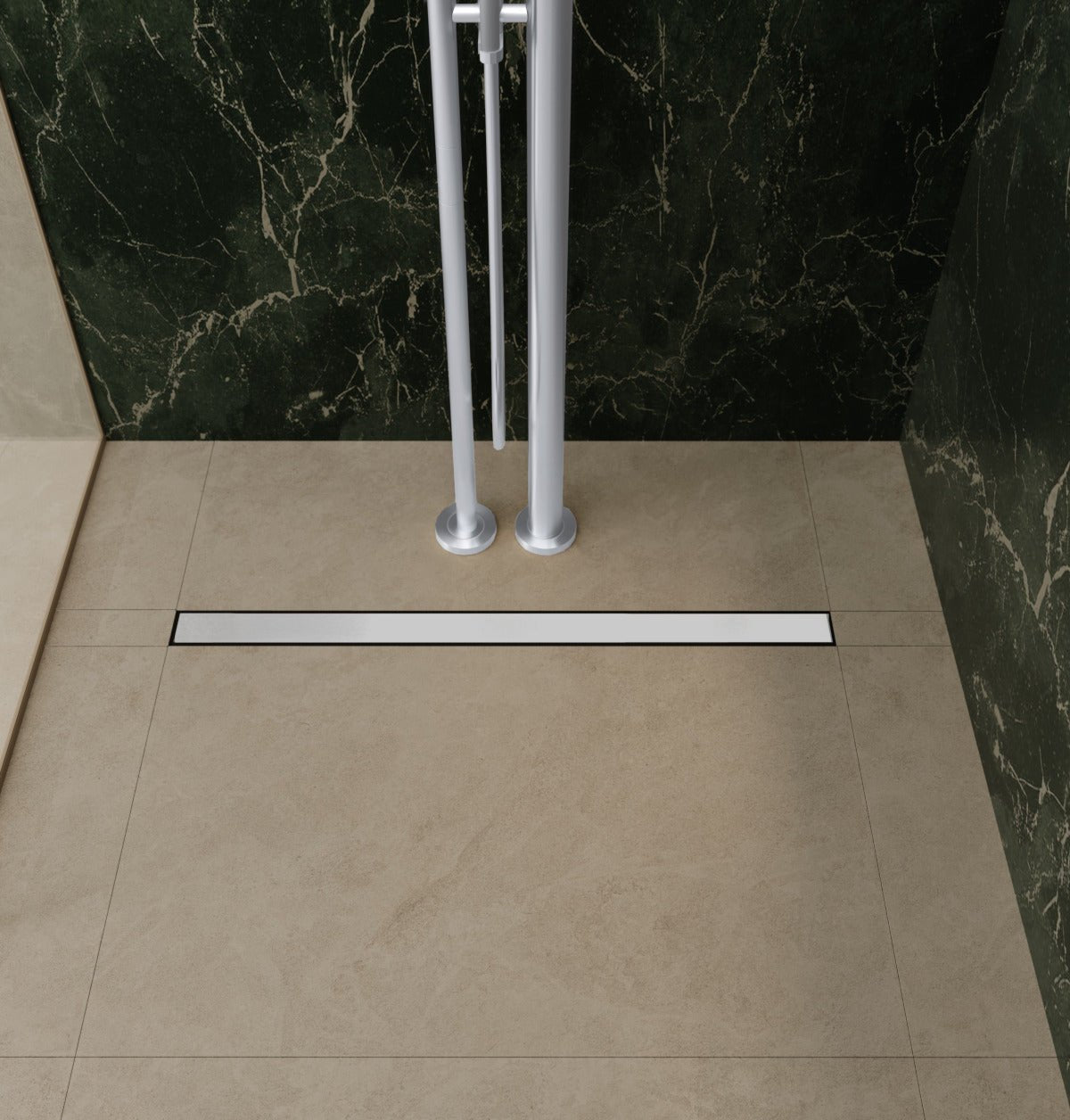

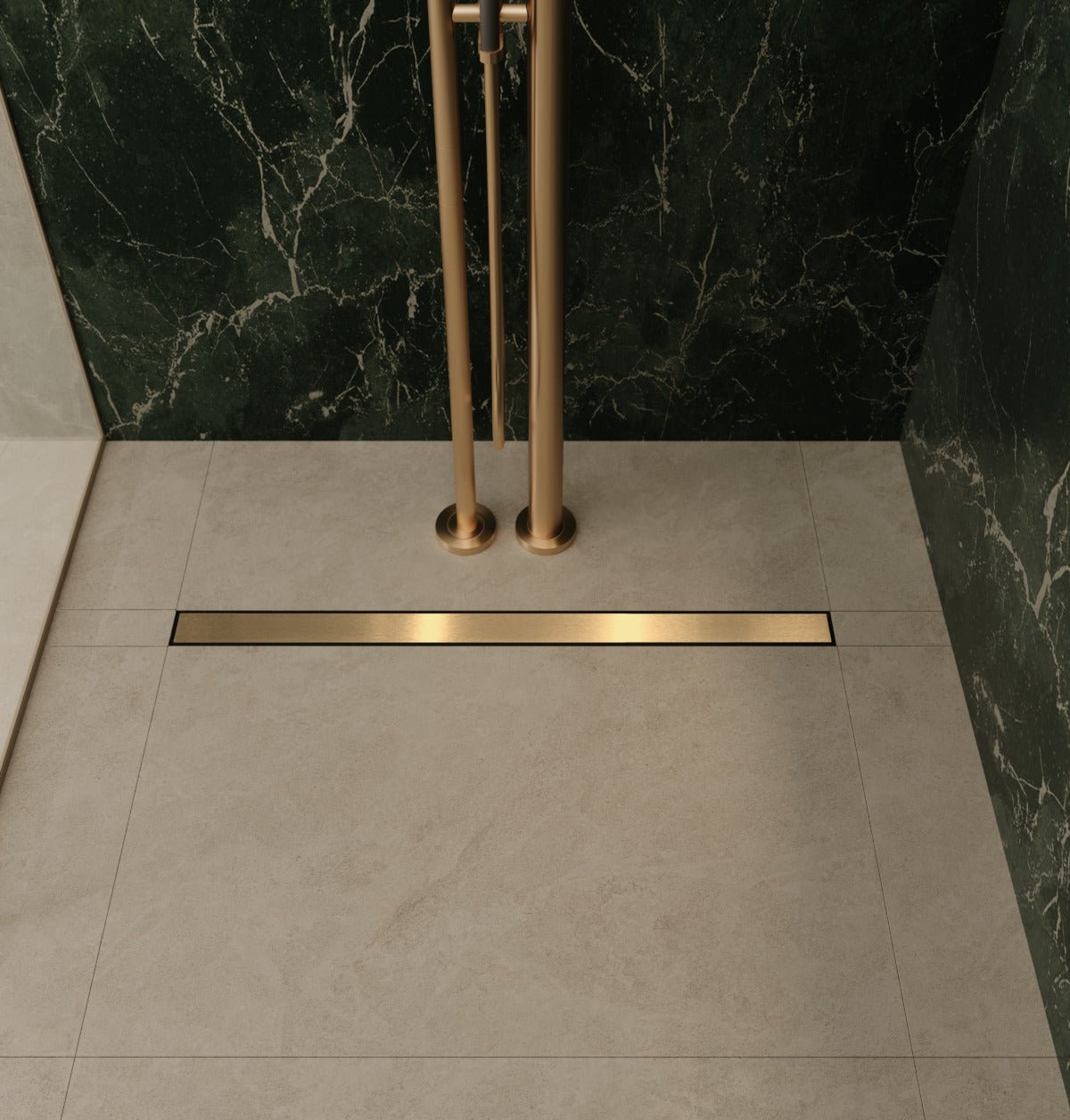

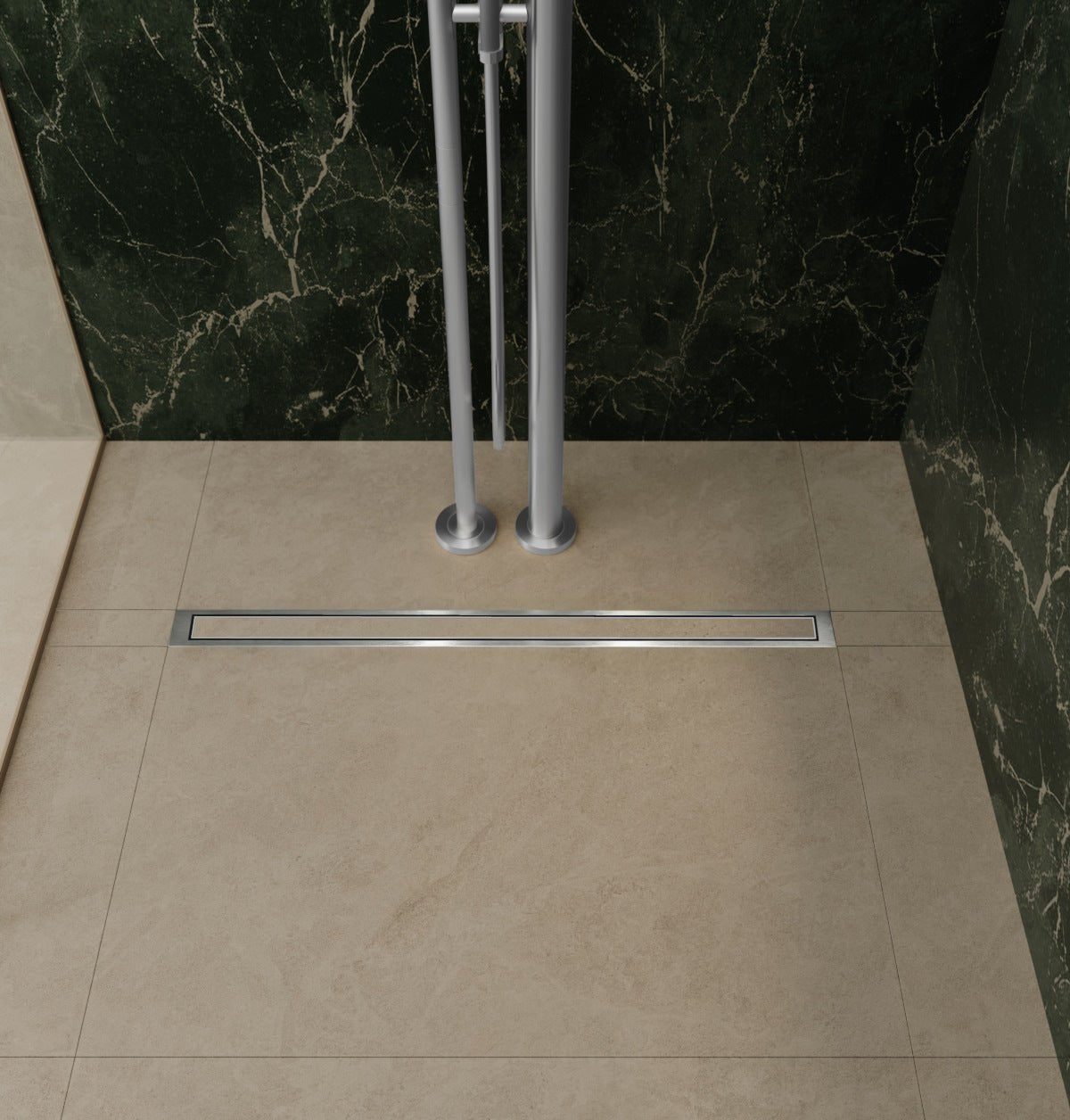

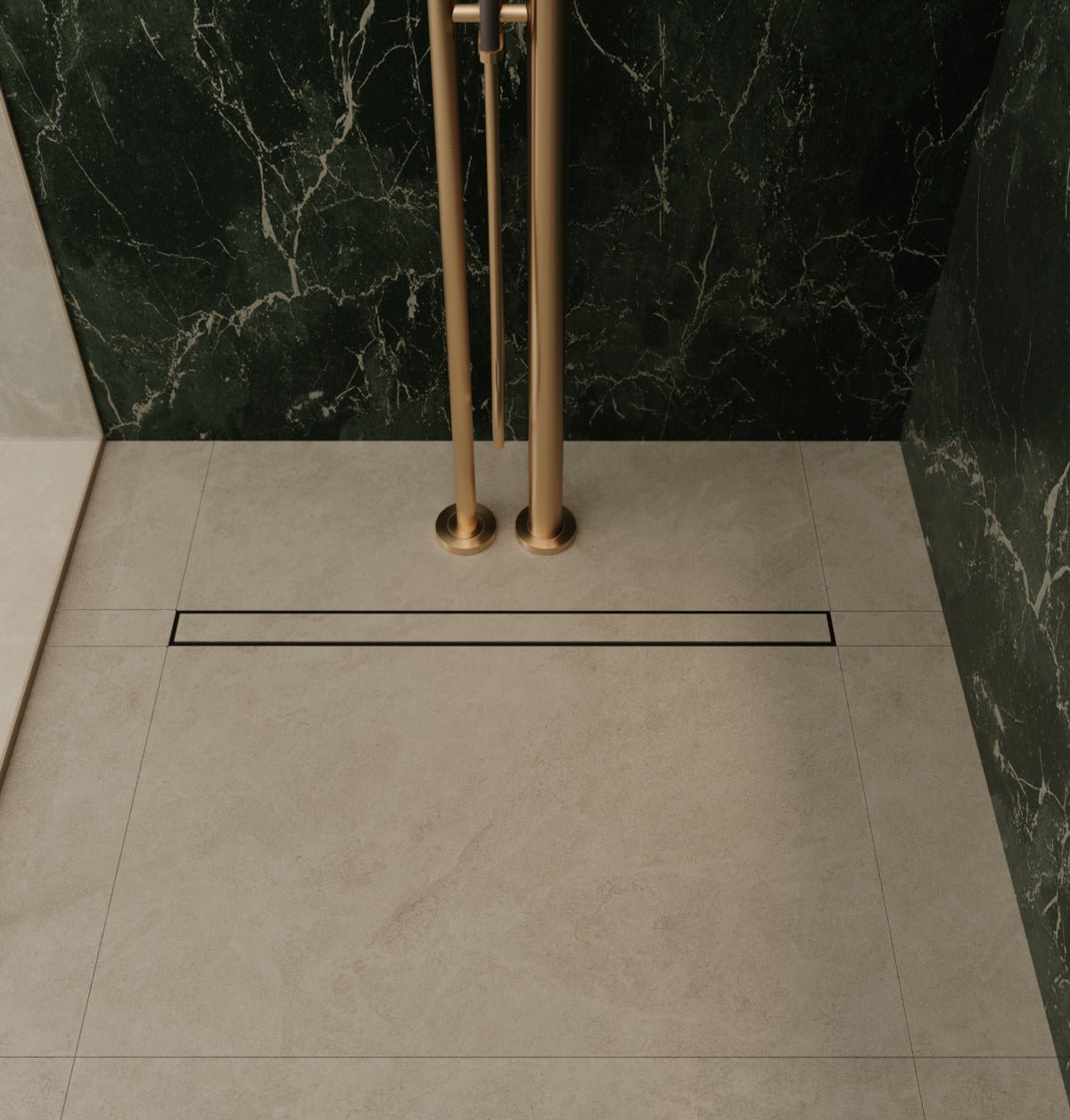

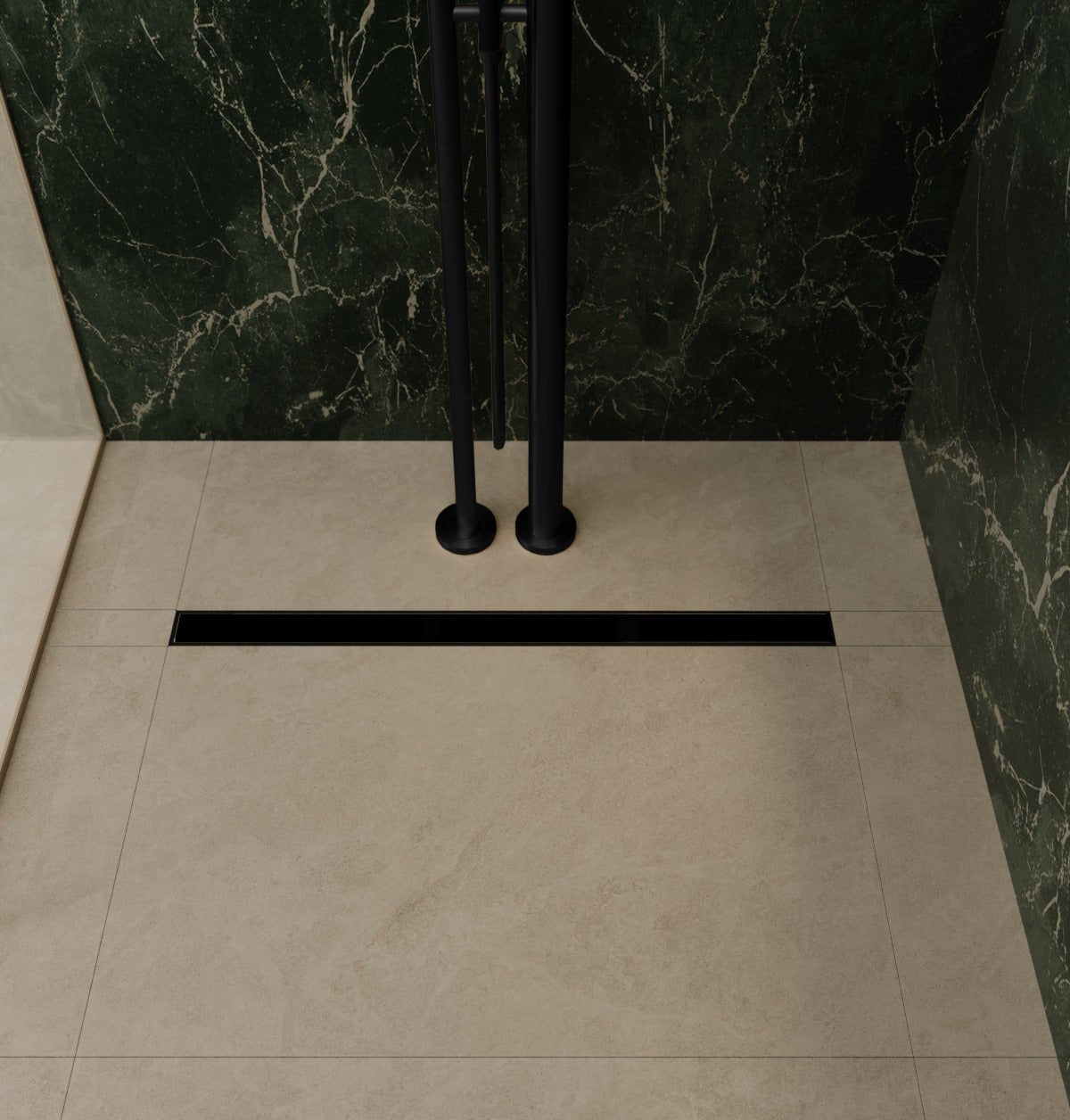

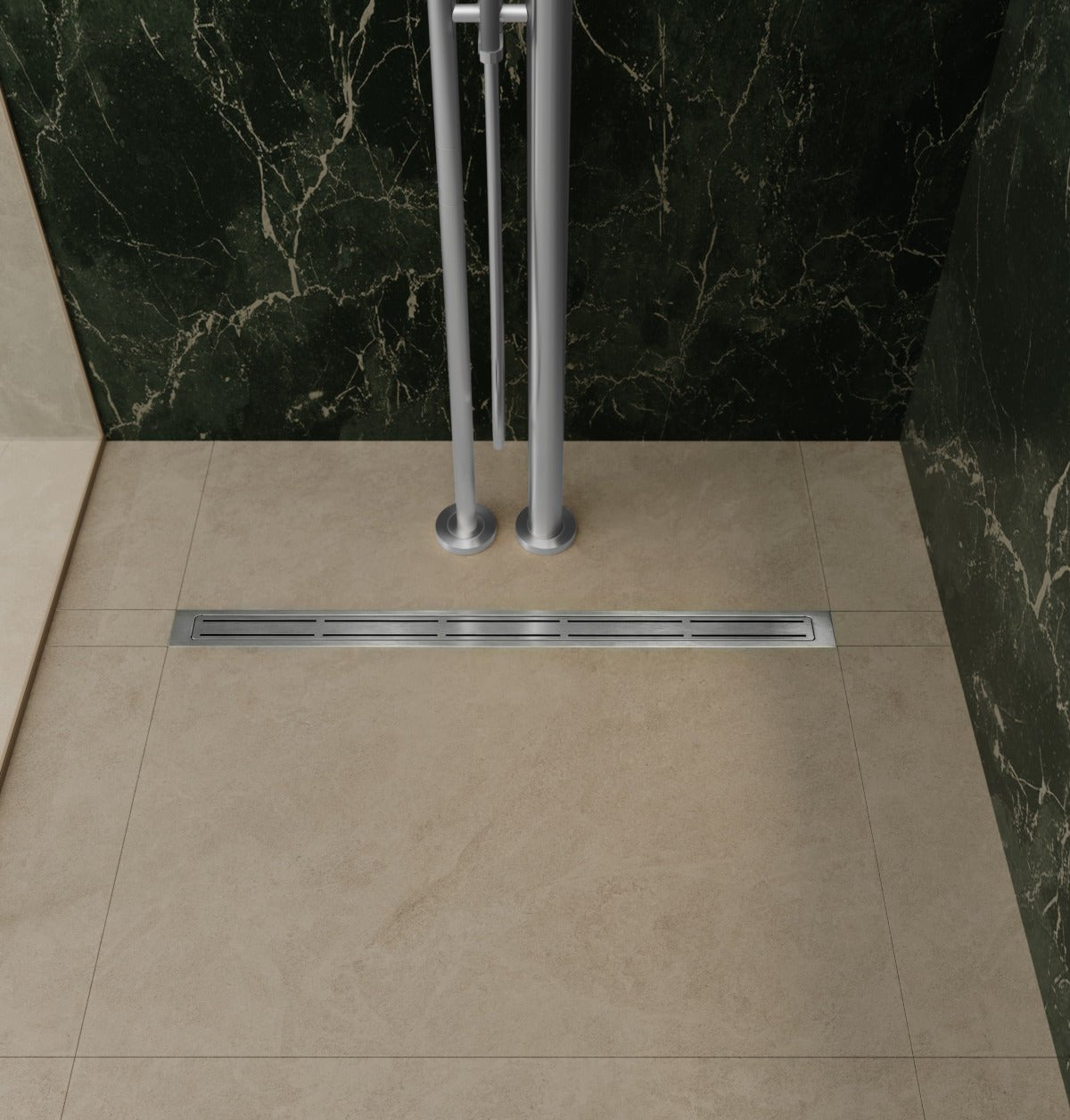

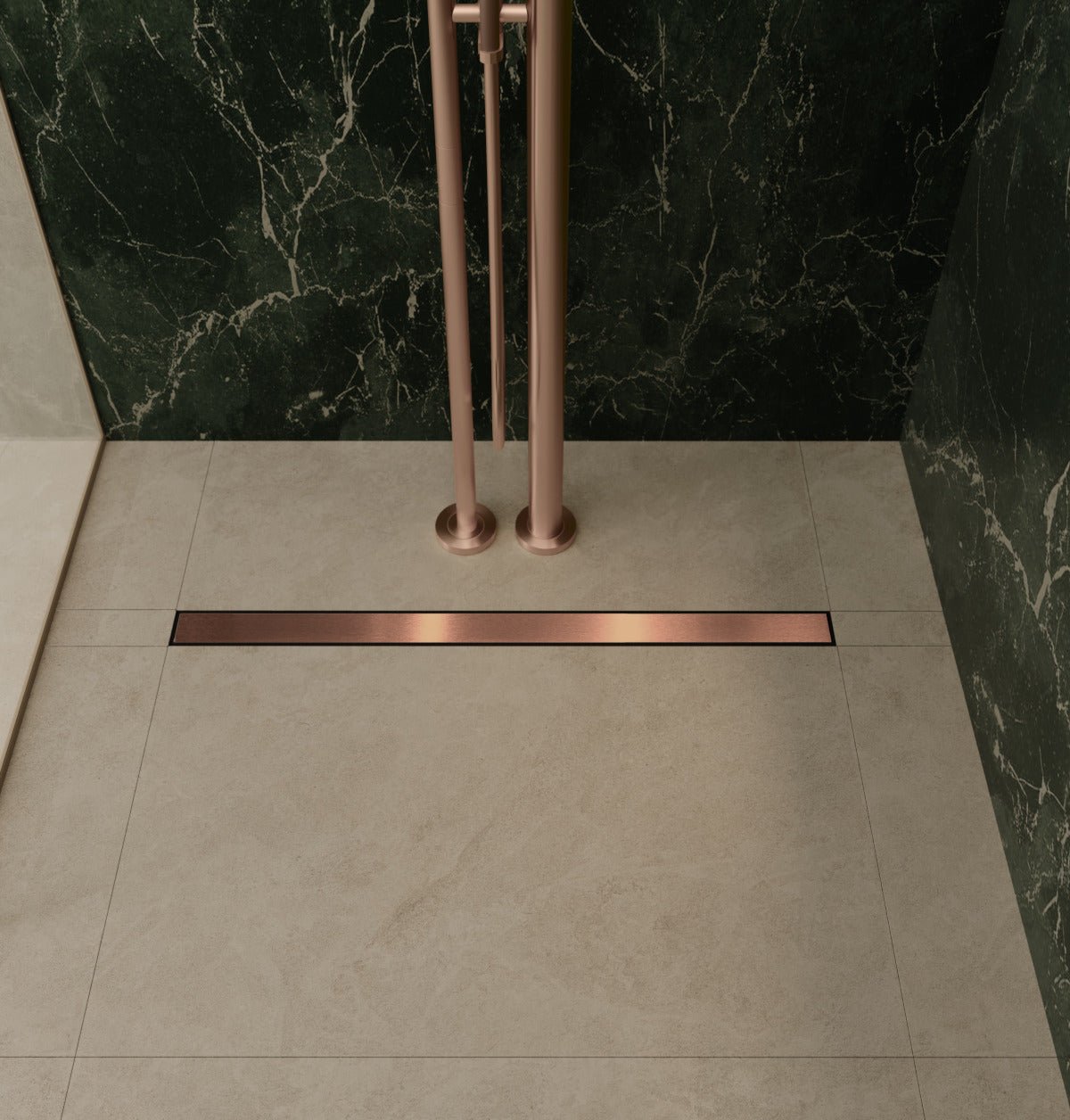

UniSlope® 3K is available in a range of finishes. Highline Custom allows you to tile into the drain and create an invisible drain with no visible metal. There is a collection of Brushed Stainless Steel grates as well as coloured if you want to match colours in your wet room. All coloured wet room drains are PVD coated which is a very durable coating that will not tarnish or fade.

All wet rooms need to be waterproofed. UniSlope comes with our easy to apply paint-on liquid waterproofing membrane which is designed to stretch and move with your building. The membrane is 100% waterproof and dries as one continuous sheet. Tested to international standards – ETAG 022-1 certified and very low emissions – EC1 Plus approved. We also recommend SharpBoard is used to provide the perfect surface to tile onto and for waterproofing shower walls and floor outside shower.

All linear drains are available as low profile which allows you to install a wet room drain with as little as 64mm floor depth. See downloads or contact us for more information.

  • Drain
  • UniSlope board
  • Tanking kit
