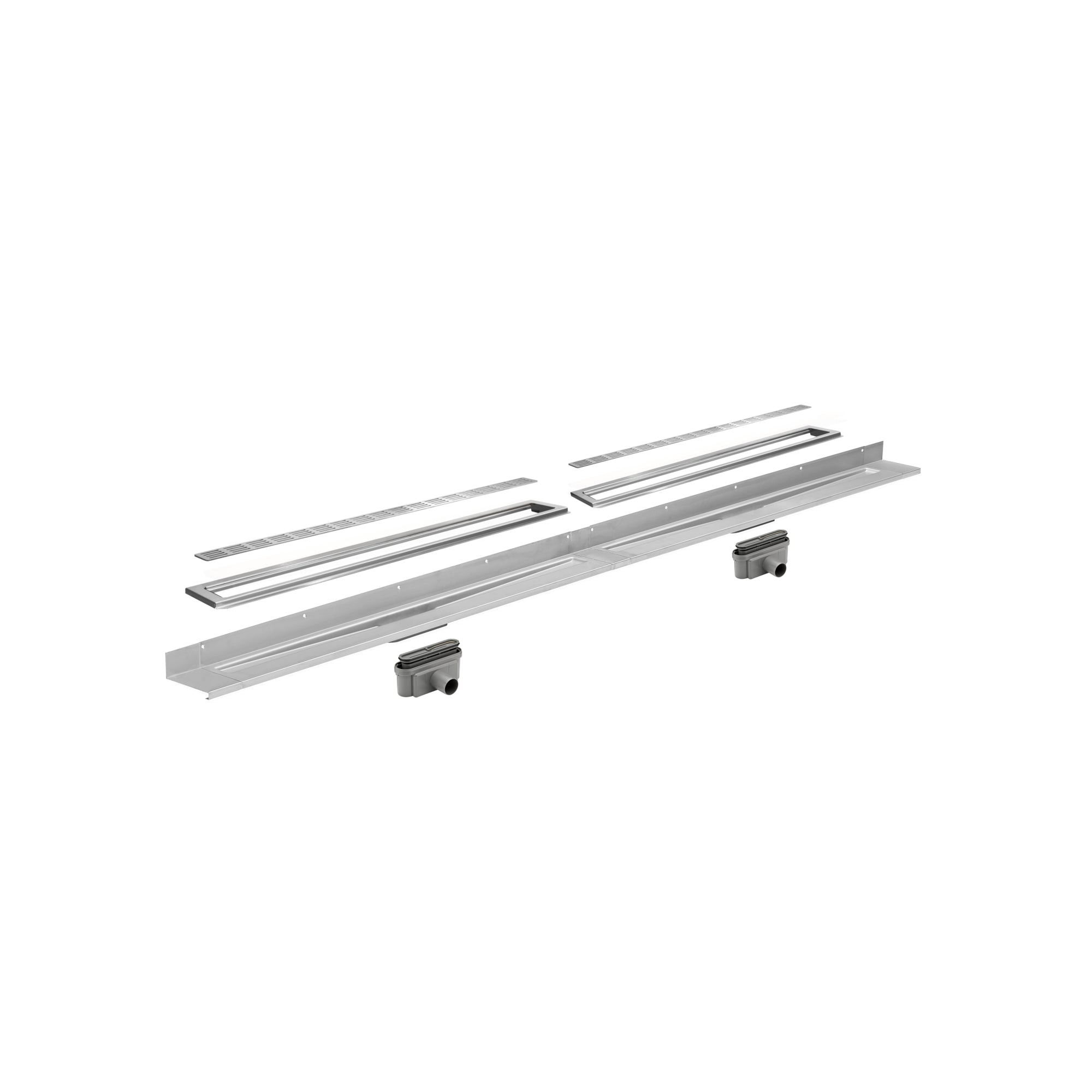

Unidrain® Wall Mounted Linear Drain - Stripe Grate

Unidrain Wall Mounted Linear drains are the perfect solution for wet rooms with a slope towards the wall. With an extensive range of finishes, this award-winning collection of wall-mounted drains from WM | Wetroom Materials will complement any wet room project on any budget.

Unidrain can be supplied with the new less cleaning trap.

Unidrain’s award winning patented linear shower drain is wall mounted to ensure a secure fixing and has four large flanges to securely waterproof onto. Is it manufactured from solid pressed stainless steel with no welds or weak areas.

The standard outlet has a capacity of 54ltrs per minute and can be easily cleaned by removing the grate / tiled cover and trap. The drain is BBA approved to comply with building regulations for wet room trapped gullies, wastes and drains.

Benefits of the Unidrain Wall Mounted

• 10-year guaranteed – Designed and manufactured by experts
• Approved for wooden and concrete construction
• Easy to install with installation instructions, step by step video and dedicated technical team to assist
• Level floor access is easily achievable
• Don’t stand on the drain whilst showering
• Drain is wall mounted for easy installation and secure fixing
• Pressed Stainless Steel drain body – no weak areas
• Large metal flanges to waterproof onto which provides a very strong tanking / waterproofing bond onto the drain
• Internal channel to prevent stagnant water
• 50mm water seal, preventing odour from coming through the drain and also complies with EN 1253
• Large range of outlets for different pipework and shower flow rates
• Removable grate / tiled cover for easy cleaning
• BBA approved

Installation Videos

This video is based on installing drain as part of the UniSlope 1K system.


[embed]https://vimeo.com/379003709[/embed]

Tiling Highline Custom

[embed]https://vimeo.com/1025409594[/embed]
