Unidrain Square Wet Room Drains

Brought to you by the award-winning Unidrain, this elegant range of quality square wet room drains is provided with an easy-to-clean, stylish alternative to other wet room drains.

What's included

What's included

Enlarge image

UniDrain Square Drains Overview:

  • BBA Approved wet room System
  • 100% waterproof
  • 10-year guarantee
  • Tiled grate and brushed stainless steel designs
  • Suitable for any thickness of floor tile/stone
  • Pressed stainless steel drain
  • Range of high-capacity outlets from 36l/min to 84l/min
  • Variety of outlet types available

Click below to view product range on NBS

NBS Partner Logo

Contact us about this product

Unidrain wet room drains are accredited and approved for wooden and concrete construction. No matter the style of home you are looking to install your new wet room drain in, Unidrains collection of square drains is suitable for any type of flooring, including low-profile and shallow wet room floors.

All of these drains are provided to you with clean and easy-to-follow instructions with support from our dedicated team. With a 10-year guarantee, we aim to follow you every step of the way of your installation to ensure that you are confident and reassured with your new wet room project.

If your project requires wheelchair accessibility, these square wet room drains are easy to install for a level-access wet room floor. With the freedom to place the drain anywhere away from the wall, you can design your wet room to the exact needs of your client.

With a pressed stainless steel body your new square wet room drain has no weak areas that will be detrimental to the lifespan of the drain. They are made with large metal flanges that allow strong and secure waterproofing/tanking bonding to the drain.

A 50mm water seal also aids in the waterproofing of your new square drain. Paired with an internal channel to prevent stagnant water, these innovative drains eliminate the risk of foul odours from arising. Also complies with EN 1253.

This collection of Unidrain Square drains come with a 48l/min drainage outlet as standard, with higher capacities of 84l/min. Among options of varying drainage capacities, this collection is also available with horizontal or vertical outlets. For shallow wet room floors, you may want to opt for the horizontal outlet with a low installation of just 107mm.

With easy-to-remove 100 x 100mm and 150 x 150mm grates and finishes available, your new Unidrain Square wet room drain couldn’t be easier to clean and maintain.

Structural Length Visual Length Drain Depth Centre Drain Kit Order Ref
314 100 107 WM82100
314 150 107 WM82150

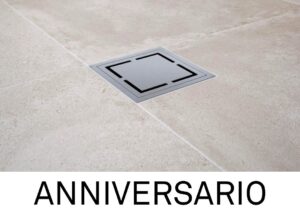

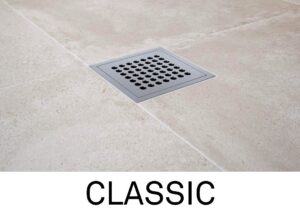

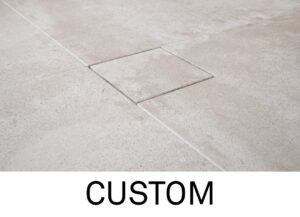

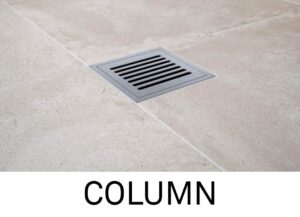

Choose your grate style:

Structural Length Visual Length Drain Depth Centre Drain Kit Order Ref
314 100 184 WM82100V
314 150 184 WM82150V
Structural Length Visual Length Drain Depth Square Drain Kit Order Ref
314 100 109-119 WM8021100
314 150 109-110 WM8021150
Structural Length Visual Length Drain Depth Square Drain Kit Order Ref
314 100 109-119 WM8021100V
314 150 109-110 WM8021150V

Unidrain wet room drains are accredited and approved for wooden and concrete construction. No matter the style of home you are looking to install your new wet room drain in, Unidrains collection of square drains is suitable for any type of flooring, including low-profile and shallow wet room floors.

All of these drains are provided to you with clean and easy-to-follow instructions with support from our dedicated team. With a 10-year guarantee, we aim to follow you every step of the way of your installation to ensure that you are confident and reassured with your new wet room project.

If your project requires wheelchair accessibility, these square wet room drains are easy to install for a level-access wet room floor. With the freedom to place the drain anywhere away from the wall, you can design your wet room to the exact needs of your client.

With a pressed stainless steel body your new square wet room drain has no weak areas that will be detrimental to the lifespan of the drain. They are made with large metal flanges that allow strong and secure waterproofing/tanking bonding to the drain.

A 50mm water seal also aids in the waterproofing of your new square drain. Paired with an internal channel to prevent stagnant water, these innovative drains eliminate the risk of foul odours from arising. Also complies with EN 1253.

This collection of Unidrain Square drains come with a 48l/min drainage outlet as standard, with higher capacities of 84l/min. Among options of varying drainage capacities, this collection is also available with horizontal or vertical outlets. For shallow wet room floors, you may want to opt for the horizontal outlet with a low installation of just 107mm.

With easy-to-remove 100 x 100mm and 150 x 150mm grates and finishes available, your new Unidrain Square wet room drain couldn’t be easier to clean and maintain.

Structural Length Visual Length Drain Depth Centre Drain Kit Order Ref
314 100 107 WM82100
314 150 107 WM82150



Choose your grate style:

Structural Length Visual Length Drain Depth Centre Drain Kit Order Ref
314 100 184 WM82100V
314 150 184 WM82150V
Structural Length Visual Length Drain Depth Square Drain Kit Order Ref
314 100 109-119 WM8021100
314 150 109-110 WM8021150
Structural Length Visual Length Drain Depth Square Drain Kit Order Ref
314 100 109-119 WM8021100V
314 150 109-110 WM8021150V
